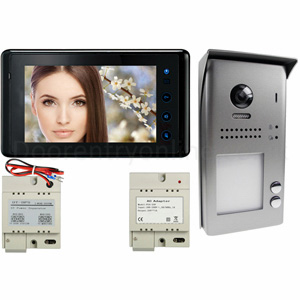

2 Button colour video entry system with touch screen video monitors. You can choose if you would like the black or white monitor when you place your order

A very stunning 2 button hands free video door entry system with 2 x 7" colour TFT video monitor that only requires 2 wire for connection and has up to a 200 meter operational range

General Functionality:
Audio door panel:
You can add an 'audio only' door panel which can be found in the Accessories section here Accessories

Audio handset facility:
You can add an 'audio only' handset which can be found in the Accessories section here Accessories

Intercom facility:
If you have more than one video monitor in the building/apartment/house/office then you can communicate with the other monitor/s
(This is a standard feature supplied with all video monitors)

Multi monitor facility:
You can have up to 4 x video monitors connected per dwelling. Additional video monitors can be purchased at any time of order or separately via the Accessories section here Accessories

Mix and match facility:
The Prestige system will allow you to 'mix & match' all video monitors and/or door panels
We presently offer a range of 2 x different style video monitors and 4 x different door panels with single or dual call button, integral keypad and standard audio only door panel which can be found in the Accessories section here Accessories

Multi door panel facility:
You can have up to 4 x door panels connected. You will require a DBC4A1 unit which can be found in the Accessories section here Accessories

Standard installation drawings
Standard installation drawings

Cable distances
Cable distance information

Door panel
Door panel manual


IP 54 rated
Double button surface mounted Zinc Alloy metal with rain hood cover and a colour CMOS, 2.0 Mega pixel 1/2.7" fisheye camera, 170 degree wide angle
6 x White LED's for enhanced night time vision
Blue Led indication upon pressing the call button
Call button reassurance tone
Crystal clear hands free audio
1 x relay lock release output

Door panel size: 176h x 90w x 27d mm


Video monitor DT27B or DT27W
Video monitor manual


7" Digital colour touch screen operation and touch screen buttons
Gloss black in colour or gloss white with light grey infill
Touch screen set up
Illuminated blue touch sensitive buttons
Intercom facility (If additional monitor is purchased)

Monitor size: 125h x 225w x 24.5d mm

What is the additional item option box for?
The TR1 timer relay board is required for any system that will be connected to a 24v dc lock release or 24v dc magnetic lock. The relay also allows for a 'timed' exit button facility which is required with any magnetic lock installation

What are the cable requirements?
The Prestige video door entry system can operate on CAT5/e, alarm or telephone cable but for best results you should use 1.0mm-1.5mm stranded twisted pair cable, especially if you have a rather long cable run. Whatever cable type you choose, it MUST be non-shielded and twisted paired. You can download the Cable Distance file here Cable distance information

There are two methods of cable installation. Old style 'Loop in/out' (Daisy chain format) or standard 'Star Topology' (All cables run to a central point) Star Topology requires a DBC4A1 4 way distributor for every 4 x video monitors. 1 x DBC4A1 4 way distributor is supplied

How many door panels and video monitors can I have?
You can have a total of 4 x door panels and 4 x video monitors for each system but you will require 1 x DBC4A1 4 way distributor for the door panels and 1 x DBC4A1 for the video monitors. Whilst the DBC4A1 is a universal unit, you cannot have for example, 2 x video monitors and 2 x door panels connected to the same DBC4A1 unit

Rule of thumb is: 1 x DBC4A1 for multi door panels and 1 x DBC4A1 for 4 x video monitors (If the video monitors are cabled in the Star Topology format)
The DBC4A1 and all other additional items can be found in the Accessories section here Accessories

Locking devices - What type of lock release can I use?
The video entry system can support any type of locking device you choose, however, this might require additional items to be purchased over and above the standard systems' basic specification. The door panel will support any standard 12v dc 'power to un-lock' type lock release that must be rated at no more than 350ma

If the lock release is rated at more than 350ma then you might require an additional power supply such as our PSB 1amp 12v dc power supply. The supplied booklet will show you connections for using an external power supply

24v Lock release or 12v - 24v dc Magnetic lock
If you require to use the system with a 24v dc lock release or 12v - 24v dc magnetic lock then you will require the TR1 relay which can be ordered by using the 'Option' check above

Electric or automated gate
If you require to use the system with an electric or automated gate that requires a typical Normally Open trigger, please download the installation drawings here
Standard installation drawings which will show you

2 x Video monitor DT27B or DT27W (Black or white)
1 x Door panel with rain hood cover
1 x DPS power unit
1 x DBC4A1
1 x PS5 - 4.5 amp power supply (Larger power supply than the PS4 illustrated)
