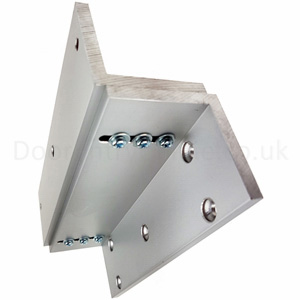

This is an additonal 'Z' bracket for the GL800 magnetic lock - Inward opening

Adjustable allowing the armature plate to be aligned from -18mm forward to 40mm backward as well as angle adjustment up to 32 degrees

Suitable for: GL800 magnetic lock only

'Z' bracket installation

Z bracket weight:0.600kg
Z bracket size: 182w x 6d x 2 x (50 x 50h) mm
Z bracket adjustment: 6 screw adjustment (3 each side) allowing the armature plate to be aligned from -18mm forward to 40mm backward as well as angle adjustment up to 32 degrees

1 x 'Z' bracket and fixings
